Digital Water Flow Meter
Digital Water Flow Meter Pool. Pulse Output + RS485 Data Transmission 10-30VDC Acid Alkaline Liquid Flow Counter Sensor.

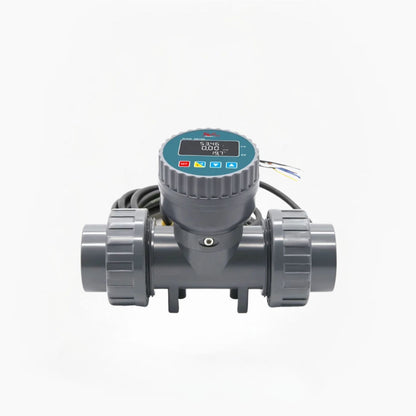

Our Paddle Wheel Turbine Flow Meter features an LCD digital display for real-time monitoring of both instant flow and total flow. Designed for accuracy and versatility, it offers ±5% measurement precision and allows adjustment of the K value for calibration. The meter supports multiple measurement units—liters (L), gallons (Gal), and kiloliters (KL)—for both total and instant flow readings. For added safety and control, it includes configurable alarm outputs with options for normally open or normally closed states, as well as a power-on delay setting for instant flow alarms. Users can also set alarms for both instant and total flow, making it an ideal solution for precise quantitative flow control in a wide range of applications.
Pairs well with
Digital Water Flow Meter
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Details
Digital Water Flow Meter Pool. Pulse Output + RS485 Data Transmission 10-30VDC Acid Alkaline Liquid Flow Counter Sensor.
Our Paddle Wheel Turbine Flow Meter features an LCD digital display for real-time monitoring of both instant flow and total flow. Designed for accuracy and versatility, it offers ±5% measurement precision and allows adjustment of the K value for calibration. The meter supports multiple measurement units—liters (L), gallons (Gal), and kiloliters (KL)—for both total and instant flow readings. For added safety and control, it includes configurable alarm outputs with options for normally open or normally closed states, as well as a power-on delay setting for instant flow alarms. Users can also set alarms for both instant and total flow, making it an ideal solution for precise quantitative flow control in a wide range of applications.
Tech Specs
IP Grade
– IP65
Measuring the Liquid
– Water or other chemical liquid
Pipe Connection
– 2’’(DN50) (63 mm)
Physical Characteristic
– Acid and alkali resistant
– Corrosion resistant
On-Device Controls
– Yes (RS-485)
Display
– LCD Display Screen
Characteristic
– Measurement accuracy: ±5%
– Max Flow Rate: 10m/s
– Working Pressure: 5kg/cm2
Electric
Power Supply
– 10-30 VDC
Max Working Current
– 60mA (30VDC)
